Audio-Technica AT33Sa Moving Coil Pickup

8.990kr

Toppmodellen i AT33-serien

Ikke på lager, tilgjengelig som restordre

Kategori:


Beskrivelse

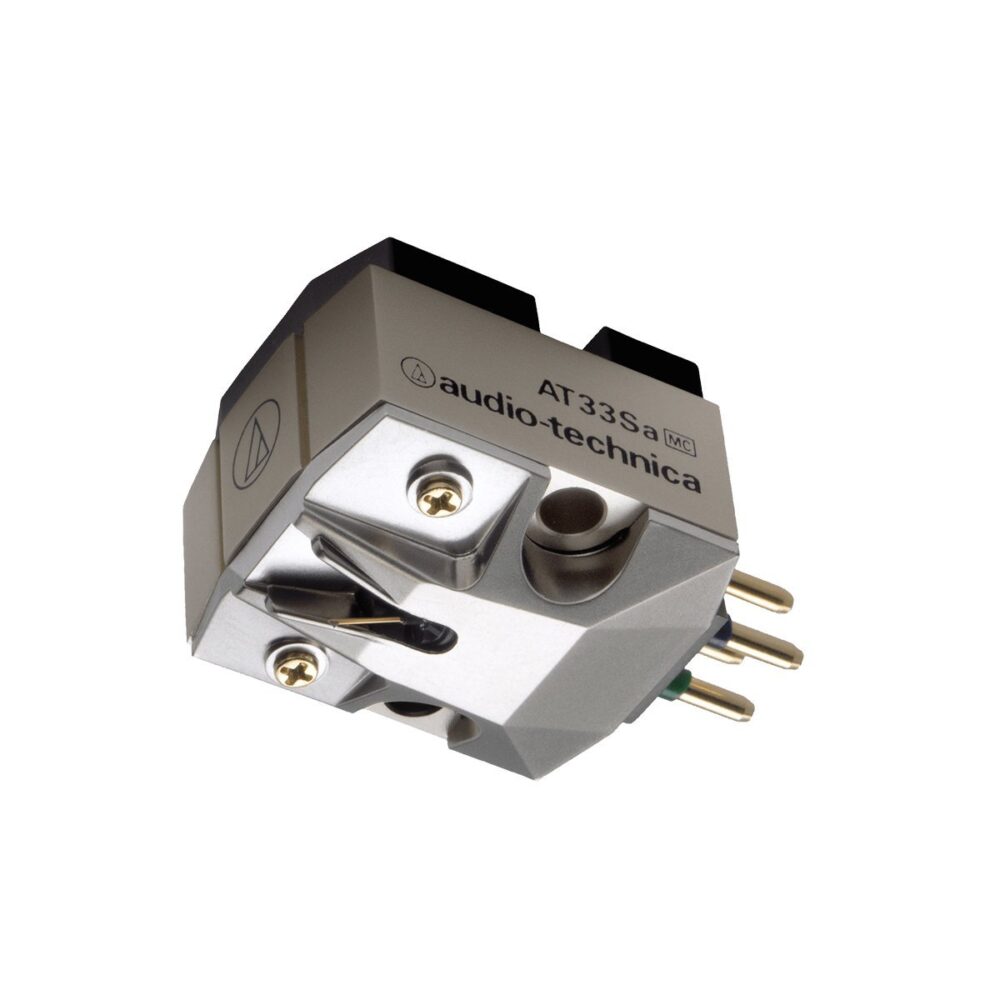

Audio-Technica AT33Sa

The AT33Sa is the first Audio-Technica moving coil cartridge to feature a Shibata line-contact stylus, known for its superior high-range performance and strong mid and bass sound.

The stylus is mounted on a tapered boron cantilever with a double damper for reduced weight and better audio quality.

The cartridge’s dual moving coils provide excellent channel separation and are affixed within a strong but lightweight VC mold to greatly reduce unwanted vibration.

The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy.

The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

Spesifikasjoner

Cartridge & Stylus
Frequency Response15 – 50,000Hz
Channel Separation30dB (1kHz)
Vertical Tracking Angle23°
Stylus ConstructionNude square shank
Recommended Load ImpedanceMin 100Ω
Coil Impedance10Ω (1kHz)
DC Resistance10Ω
Coil Inductance22 µm (1kHz)
Output Voltage0.4mV (1kHz and 5cm/sec.)
Output Channel Balance0.5dB (1kHz)
Stylus ShapeShibata
CantileverNude tapered boron
Static Compliance40×10-6cm/dyne
Dynamic Compliance10×10-6cm/dyne (100Hz)
Mounting1/2” centers
DimensionsH16×W16.6×D26.5mm
Accessories Included1 non magnetic screw driver; 1 brush; 2 washers; 2 Nuts; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires (AT6101)
Body MaterialAluminium/Synthetic Resin
Stylus Curvature RadiusShibata
TypeDual Moving Coil
Weight6.9g
