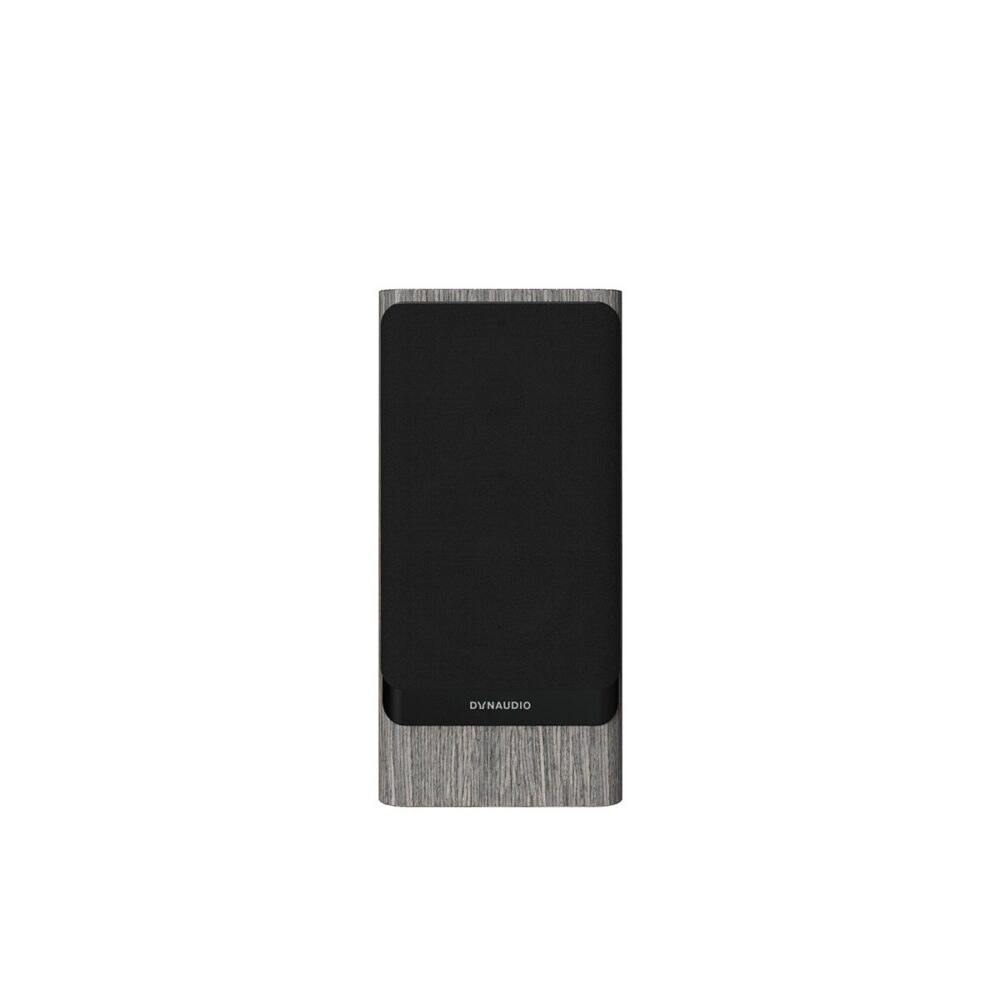

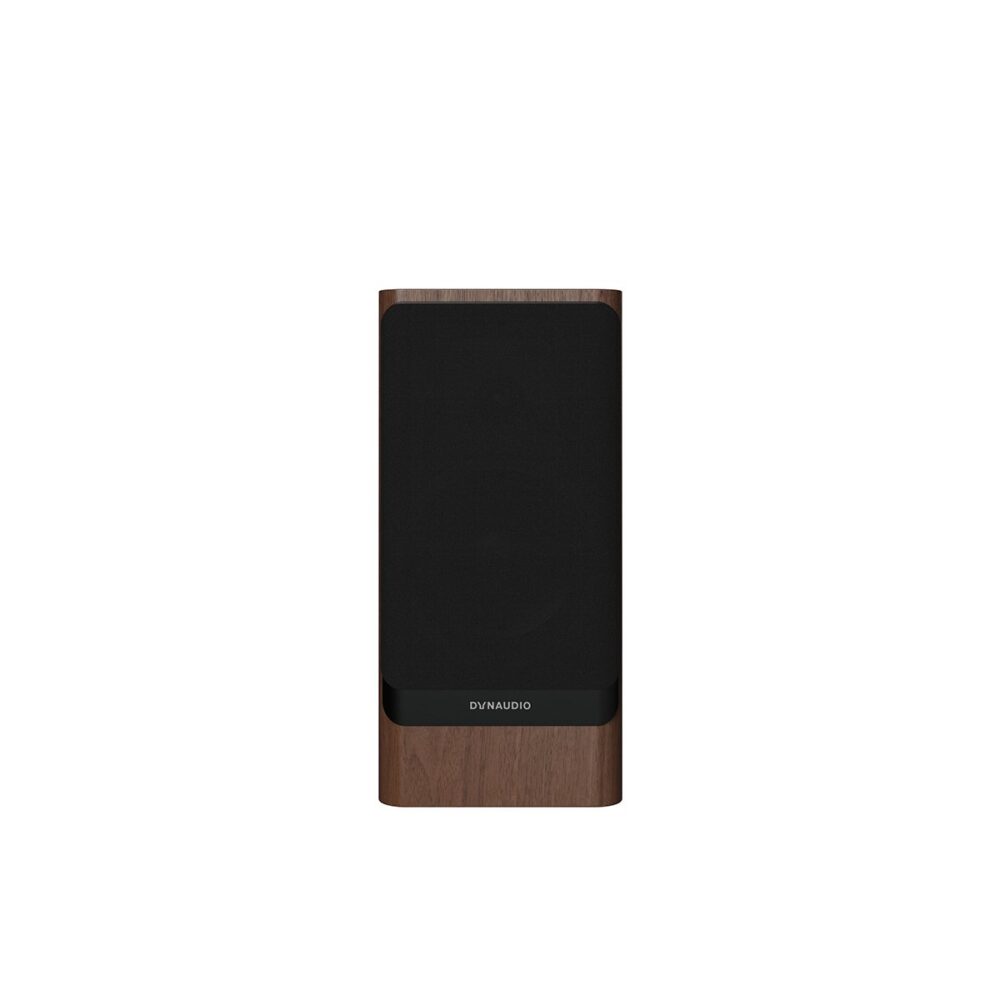

Dynaudio Contour 20i

49.990kr

Nullstill
Varenummer: I/A Kategorier: ,


Beskrivelse

  • New Esotar 2i tweeter

    Featuring a larger rear chamber and now the Hexis inner dome, which helps to reduce unwanted resonances and flatten the frequency response

  • New spider

    New asymmetric spider for increased system symmetry – and this one is made from aramid fibres for improved acoustic response

  • New crossover

    Extensive tweaks from the 2016 Contour model have led to a simpler, cleaner, and even better-performing unit

  • Voice coil

    Large diameter, long throw aluminium voice-coils




Hear the difference: the new Contour 20i is ready to blow your sonic socks off

The new Contour 20i has been designed to surpass every other standmount Contour model we’ve created. And it succeeds.

Dynaudio Contour Tweeter

The new Esotar 2i tweeter is a turbocharged version of the much-loved Esotar2. It now features a larger rear chamber for more effective damping, and the inventive Hexis inner dome seen on Confidence, Core and more. Together they flatten the frequency response and reduce unwanted resonances for even clearer, smoother treble.

The woofer has been tweaked, too. It’s still made of our own Magnesium Silicate Polymer (MSP) material, of course, it’s still powered by a lightweight aluminium voice-coil, and it still uses a vented dual-ferrite magnet system – but behind the distinctive black cone lurks a brand-new spider suspension. This one is made from aramid fibres, and retains the ingenious structural properties from before (the ribs are of varying width to give even finer control over the cone’s excursion). You’d be surprised at the sonic difference such a small change can make…

Dynaudio Contour Crossover

And because those driver changes provide an inherently flat frequency response, we’ve been able to simplify the crossover too. It’s a thing of beauty, isn’t it? There’s no longer any need for extra impedance-correction circuitry – which means an even more direct signal path. And cleaner sound.

Dynaudio Contour Baffle

Making a Contour without its signature baffle would be like making a car without wheels. Unthinkable. But there’s always room for improvement – and our designers love to stretch their legs. This baffle is aluminium, and set into the cabinet. Its chamfer is included in the driver’s basket – which not only looks great, but also reduces unwanted high-frequency diffraction effects for clearer treble, and provides a solid foundation for the drivers to do their work. A solid foundation means improved high-volume performance at low frequencies, too (although your neighbours might not thank us for that).

Even the internal damping is brand-new – using lessons learned from Evoke and Confidence.

Spesifikasjoner

Sensitivity:86dB (2.83V / 1m)
IEC power handling:180W
Impedance:4 Ω
Frequency response (± 3 dB):39Hz–23kHz
Box Principle:Bass reflex rear ported
Crossover:2-way
Crossover frequency:2200Hz
Crossover topology:2nd order

Woofer:18cm MSP
Midrange:
Tweeter:28mm Esotar2i
Weight:14kg / 30 7/8lb
Dimensions (W x H x D):215x440x360mm
8.5×17.3×14.2in
Dimensions with feet/grille (W x H x D):215x440x396mm
8.5×17.3×15.6in
