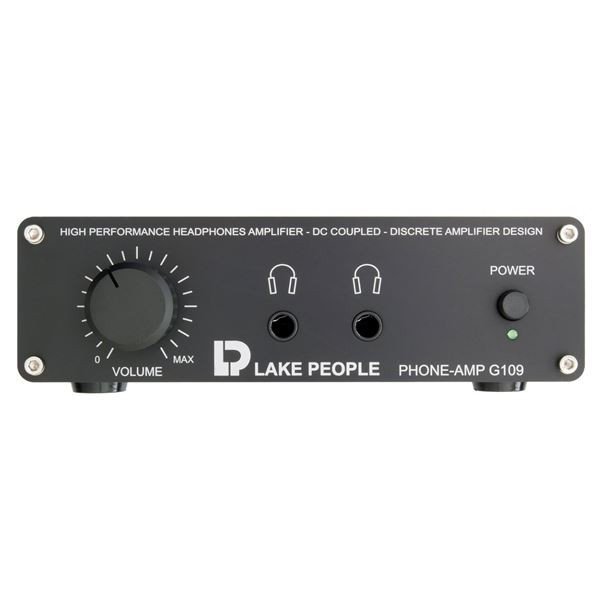

Lake People G109P

5.990kr



Lake People G109P er en headamp med god lydkvalitet og høy byggekvalitet. Balanserte XLR-innganger.



2 på lager (kan bli restordre)



Beskrivelse

The Headphone amp G109-P was developed with the target to enable highest transmission quality for low- , medium- and high-impedance headphones.

«The philosophy of headphone amplification, according to Lake People, is simple: high output voltage; high output power; high damping factor due to low output impedance; and low noise through low internal gain. These four essential ingredients are easy to describe but not always easy to achieve. With the G109, and to a lesser extent the G103, Lake People have accomplished those goals.» — John Grandberg, Inner Fidelity.

Les hele omtalen her: Inner Fidelity

– Electronically balanced inputs with gold plated XLR connectors
– Unbalanced inputs, gold plated RCA connectors with priority
– DC coupled amplifiers (switchable)
– PRE-GAIN: Overall gain switchable in 3 steps
– NF trammission band exceeds 150 kHz (-3dB)
– High-grade volume control ALPS RK 27 with optimized channel balance and lowest crosstalk
– Toroidal transformer, large smoothing capacitors
– Discrete amplifier design
– Outputs with relais controlled switch-on delay

Spesifikasjoner

Balanced inputs: 2 x XLR (L / R)
Unbalanced inputs: 2 x Cinch (L / R) with priority
Impedance: 10 kohms
Amplifier Channels: 2 (Stereo)
Nom. input level: + 6 dBu
Amplifier Gain: +8 dB
… with PRE-GAIN: -4 / +8 / +14 dB
Frequency range: 0 Hz … 150 kHz (-3 dB)
Slew Rate: > 8V / usec
Dynamic range: > 129 dB (A-wtd)
Noise: < -101 dBu (A-wtd)
THD+N: < -100 dB @ 10V in 100 Ohms (1W)
< -100 dB @ 18V in 600 Ohms (5W)
Crosstalk: < -110 / -100 dB (@ 1 / 15 kHz)
Max. output level: > 18.8 Veff in 600 ohms = 590 mW
> 13.8 Veff in 100 ohms = 1900 mW
> 10.7 Veff in 50 ohms = 2300 mW
> 7.8 Veff in 50 ohms = 1900 mW
> 3.7 Veff in 16 ohms = 410 mW
Outputs: 2 x 1/4″ phone jacks
Power supply: 230 / 115 V AC 8 VA
Dimensions: 168 x 49 x 145 mm (W x H x D)
Case Material: Black anodized aluminium
