Little Fwend High

1.890kr

Norsk tonearmsløfter!





Beskrivelse

Say hello to…

Merker du at pulsen stiger, svetten pipler i håndflater og panne, og at du ikke helt får med deg musikken når du nærmer deg slutten av en vinyl-side?

Frykt ikke mer! Little Fwend er her til unnsetning!


Little Fwend kommer i to varianter- en lav og en høy.


1.  Lifting Mechanism: Safe. Smooth. Silent. Those were the most important aspects of the design. We experimented a lot finding the right relationship between spring compression force, travel, dampening and friction. Little Fwend lifts the tonearm smooth and controlled with minimum use of force (and a little help from Newtons fwends). Little Fwend can lift tonearms with cartridges set up to 8 grams VTF.

Release Antenna: High carbon steel Roslau piano wire. Very low lateral force is required to release the mechanism. The cantilever will love to meet such low resistance.

2. Rubber Beam. Neoprene rubber. The high friction rubber padding lets the tonearm rest safely and stable even with the level a few degrees off both horizontally and vertically. If you´ve read this far, you´re probably the level type of audiophile.

Height Ranges. Little Fwend comes in two different sizes, Low and High. The Low model can be used under tonearms with clearance between the underside of the arm wand and the mounting surface as low as 32mm, up to 49mm. the High model from 49mm, up to 82mm. Height is adjusted by a set screw in the base. The appropriate hex key is enclosed. Please measure the distance from mounting/plinth surface up to the underside of tonearm wand. Take the measurement when the tonearm has correct VTA and the needle is in the groove. Subtract approx. 1mm from this distance, to make sure there will be safe clearance between the rubber beam and the moving tonearm.

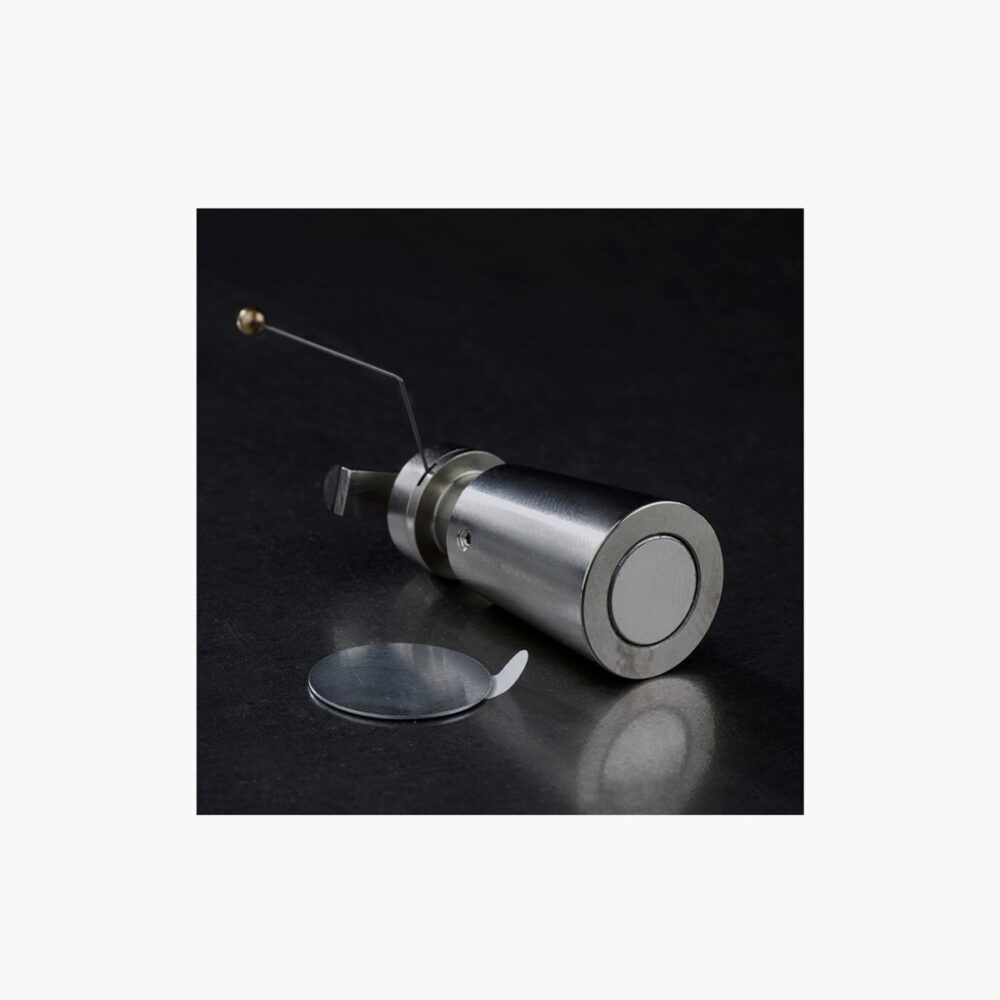

3. Mounting Platform. 0.3mm mild steel disc with adhesive backing. Little Fwend is fastened to the platform through magnetic force. The axially magnetized N52-magnet in the base is strong enough to keep Little Fwend in place, but weak enough to easily reorient the trigger antenna for the various run-out groove areas. Little Fwend is readjusted in seconds. The diametrical magnetic field is very low and will not affect magnetic metals in the radius of the base.

Kompabilitetsliste for Little Fwend

List of compatible turntables for Little Fwend. Updated 10.02.2020.
We are constantly adding turntables to this list, but as there are over 3000 models out there, we don´t have them all specified. If you find your turntable on this list, but not the specific height model you need – instructions on how to determine the right one can be found here.

Little Fwend is an automatic end-of-the-record tonearm lifter. It is a precision engineered accessory for manual turntables that will prolong the life of your stylus and takes about 10 minutes to install. Little Fwend will work for all tonearms with gimbal, unipivot, dual-pivot and string suspension bearing (incl. Well Tempered Labs), but not linear tracking tonearms.

The LOW and HIGH are available through all our international distributors.
The XHIGH is a custom model available directly from us.

L  = LOW: 32-49mm height range.

 H = HIGH: 48-81mm height range.

 XH = XHIGH:  77-137mm height range. Email us at info@littlefwend.com.

Disclaimer
Even if you find your turntable model on the list below, we can not guarantee 100% that Little Fwend will have the sufficient space needed to function properly. As there are many customized configurations of tonearms, armboards and plinths, make sure you have the required mounting space for your specific set-up by reading through the “Placement of Mounting Disc”, found at the bottom of this page.

The turntable brands below also have one or more models which can use Little Fwend, you just have to measure and decide if the space requirements are met.

Acoustic Solid, Ariston, Audio Note, Basis, ERA, Goldring, JBE, Michell, Micro Seiki, Mission, NAD, Origin Live, Pioneer, Rek-O-Kut, Russco, Sony, Systemdek, Teres, etc. etc. etc. and so on…

Any additions to the list or technical questions? Please email us at info@littlefwend.com and we will try to help.

ACOUSTIC RESEARCH

XA

XB

ACOUSTIC SIGNATURE

Barzetti

Invictus

Manfred

Mk2

Merlin LOW

Novum LOW

Primus LOW

Triple X (Tonearm dependent)

Wow

Wow XL HIGH

Wow XXL HIGH

AMG

Giro HIGH

Viella LOW

Viella Forte

ANALOGUE WORKS

TT1 LOW

ARTEMIS LABS

SA-1S

ARTISAN FIDELITY

Garrard 301 Statement HIGH

w/ Tangenta arm LOW

ATR

Celebration 40 LOW

AUDIO SILENTE

The Blackstone

AYRE/BAUER

DPS

BLUENOTE

Bellavista

BRINKMANN

Balance LOW

Bardo LOW

LaGrange

Oasis LOW

Sinus

Spyder LOW

BRYSTON

BLP-1 HIGH

CAMBRIDGE AUDIO

Alva TT LOW

CANTANO

The Cantano W

CLEARAUDIO

Ambient HIGH

Anniversary HIGH

Concept HIGH

Concept Plus HIGH

Concept Wood HIGH

Emotion LOW

Emotion SE HIGH

Ovation HIGH

Performance DC HIGH

Performance DC Wood HIGH

Solution LOW

DR. FEICKERT

Blackbird HIGH

Firebird HIGH

Venti HIGH

Volare LOW

Woodpecker HIGH

DÖHMANN

Helix 1 HIGH

Helix 2 HIGH

E.A.T

C-Sharp LOW

E-Flat LOW

Forte HIGH

Forte S HIGH

ELAC

Miracord 70 LOW

Miracord 90 Anniversary HIGH

EMT

928

EDWARDS AUDIO

Apprentice

TT1

TT2

EINSTEIN

The Record Player LOW

ELIPSON

Alpha 100 LOW

Omega 100 LOW

ESOTERIC SOUNDS

Rek-O-Kut Rondine 3

Rek-O-Kut T3378

Rek-O-Kut Trovatore

FERN & ROBY

Montrose

The Tredegar LOW

FUNK FIRM

Flamenca

Gett!

Little Super Deck

Super Deck

Vector V

GARRARD

301 (Tonearm dependent)

401 (Tonearm dependent)

GINI

AD-1 HIGH

GOLD NOTE

Giglio LOW

Mediterraneo HIGH

Pianosa LOW

Valore Plus 425 / Light LOW

HANSS ACOUSTICS

Amari LP-10

T-10

J.C. VERDIER

La Platine XHIGH

KODO

The Beat XHIGH

KONDO

Ginga XHIGH

KRONOS

Sparta

Sparta 0.5

Ltd. Professional HIGH

KUZMA

Stabi M (Tonearm dependent) XHIGH

Stabi R (Tonearm dependent) HIGH

Stabi Reference (Tonearm dependent) HIGH

Stabi SD (Tonearm dependent) XHIGH

LENCO

L70/75/78 (Tonearm dependent) LOW

LINN SONDEK

LP12 LOW

LUXMAN

PD-171

PD-262

PD-264

PD-272

PD-277

PD-300

PD-375

PD-441

PD-444

PD-555

MARANTZ

TT-15

MARK LEVINSON

No. 515 Turntable HIGH

MCINTOSH

MT-2

MT-5 LOW

MT-110 LOW

MERRILL-WILLIAMS

REAL 101.2 (Tonearm dependent)

MOFI

Ultra Deck LOW

Studio Deck LOW

MUSICAL FIDELITY

Roundtable LOW

NEW HORIZON

GD-3 LOW

NOTTINGHAM ANALOGUE

Ace Space 294

Dais

Hyperspace

Space Deck 294

ORIGIN LIVE

Sovereign LOW

Resolution

PALMER

2.5-12

PEAR AUDIO

Kid Howard LOW

Kid Punch LOW

Kid Thomas HIGH

Little John LOW

PERPETUUM EBNER

PE-800 HIGH

PE-1000 HIGH

PE-1010 HIGH

PE-2525 HIGH

PE-4040 HIGH

PRO-JECT

Perspective

RPM 3

RPM 9 HIGH

RPM 10 HIGH

Signature 10 HIGH

Signature 12 HIGH

The Classic

The Classic SB SuperPack

Xtension 9 Evolution LOW

Xtension 10 Evolution HIGH

Xtension 12 Evolution HIGH

PTP AUDIO

Solid12 LOW

REED

Muse 1C

Muse 2C

Muse 3C

REGA

P3-24 LOW

P5 LOW

P7 LOW

P8 “Skeletal” plinth XHIGH

P9 LOW

Planar 1 LOW

Planar 2 LOW

Planar 3 LOW

Planar 6 LOW

Planer 8 “Skeletal” plinth XHIGH

Planer 10 “Skeletal” plinth XHIGH

RP1 LOW

RP3 LOW

RP6 LOW

RP8 LOW

RP8 “Skeletal” plinth XHIGH

RP10 “Skeletal” plinth XHIGH

RP78 LOW

REVOX

Studiomaster T700 HIGH

ROKSAN

Radius LOW

Xerxes

Xerxes 20 Plus (w/ Standard tonearm) LOW

S.A.P. AUDIO

Tempo

SEMPERSONUS

TE1 LOW

SHINOLA

The Runwell

SME

Model 10

Model 15 LOW

Model 20/12

Model 30/12

Synergy

SOTA

Series IV Comet LOW

Series IV Moonbeam LOW

SOULINES

Elgar

Satie

SRA

Seismograf I/II HIGH

T + A

G 2000 R LOW

TARUM

TT Level 2.1 LOW

TECHDAS

Air Force V (Tonearm dependent)

TECHNICS

SL-1200/1210 Mk2-Mk7/G/GR/GAE DISCO FWEND

SP-10/SP-10R (Tonearm dependent)

THALES

TTT-Compact II

TTT-Slim

THORENS

Prestige (Tonearm dependent)

Reference (Tonearm dependent)

TD124 (Tonearm dependent)

TD125

TD126

TD145

TD147

TD150 LOW

TD160 LOW

TD166 LOW

TD203

TD206

TD209

TD226

TD550

TD903

TD905

TD907

TD2015

TD2035

THRAX

Yatrus LOW

TOURBILLON

Braccio Singolo XHIGH

Doppio Braccio XHIGH

TRANSROTOR

Argos

Gravita TMD

Rossini

Triangle Art

Master Reference XHIGH

TW-ACUSTIC

Raven Black Night XHIGH

VERTERE

MG-1 LOW

RG-1

SG-1

VPI

Aries

Avenger (w/ 12″ tonearm) LOW

Classic HIGH

Classic Signature HIGH

Cliffwood LOW

HR-X

HW-19

HW-40 HIGH

Nomad LOW

Player LOW

Prime HIGH

Prime Signature HIGH

Scout

Scout JR

Scoutmaster TNT

Titan LOW

Traveler LOW

WAVE KINETICS

NVS Reference (w/ 12” tonearm)

WELL TEMPERED

Amadeus HIGH

Royale 400

Simplex HIGH

Versalex

ZAVFINO

Copperhead HIGH

ZV5 HIGH

ZV8 HIGH

Placement of Mounting Disc
There should be approx. 30mm diameter of mounting space from the platters edge to the base of the tonearm or any object potentially restricting Little Fwends free movement. Measure while the tonearm points towards the run-out groove area.

For safety, turn off the turntable motor.
The stylus should be hovering above the outer edge of a standard 12-inch records paper label before determining the positioning of the mounting disc. The recommended placement of the disc is straight under the tube of the tonearm, about halfway between the platter and the base of the tonearm. Make sure you place the mounting disc so the protruding release antenna of Little Fwend is at least a couple of millimeters from the platter.

If you are really obsessive about not adhering anything to the plinth, the non-adhesive restickable dot enclosed in the package can be placed under the metal mounting disc.
