Piega Master Line Source 2

745.000kr

Master Line Source 2 er en mer kompakt versjon av Piega’s flaggskipsystem, Master Line Source.

Med et helt unikt to-veis båndsystem som også spiller dipol. To 8″ basselementer i front og to slaver på baksiden. Alt i samme lekre kabinettet.

  • Kan oppleves hos Duet Audio i Bergen
Nullstill
Varenummer: I/A Kategorier: ,


Beskrivelse

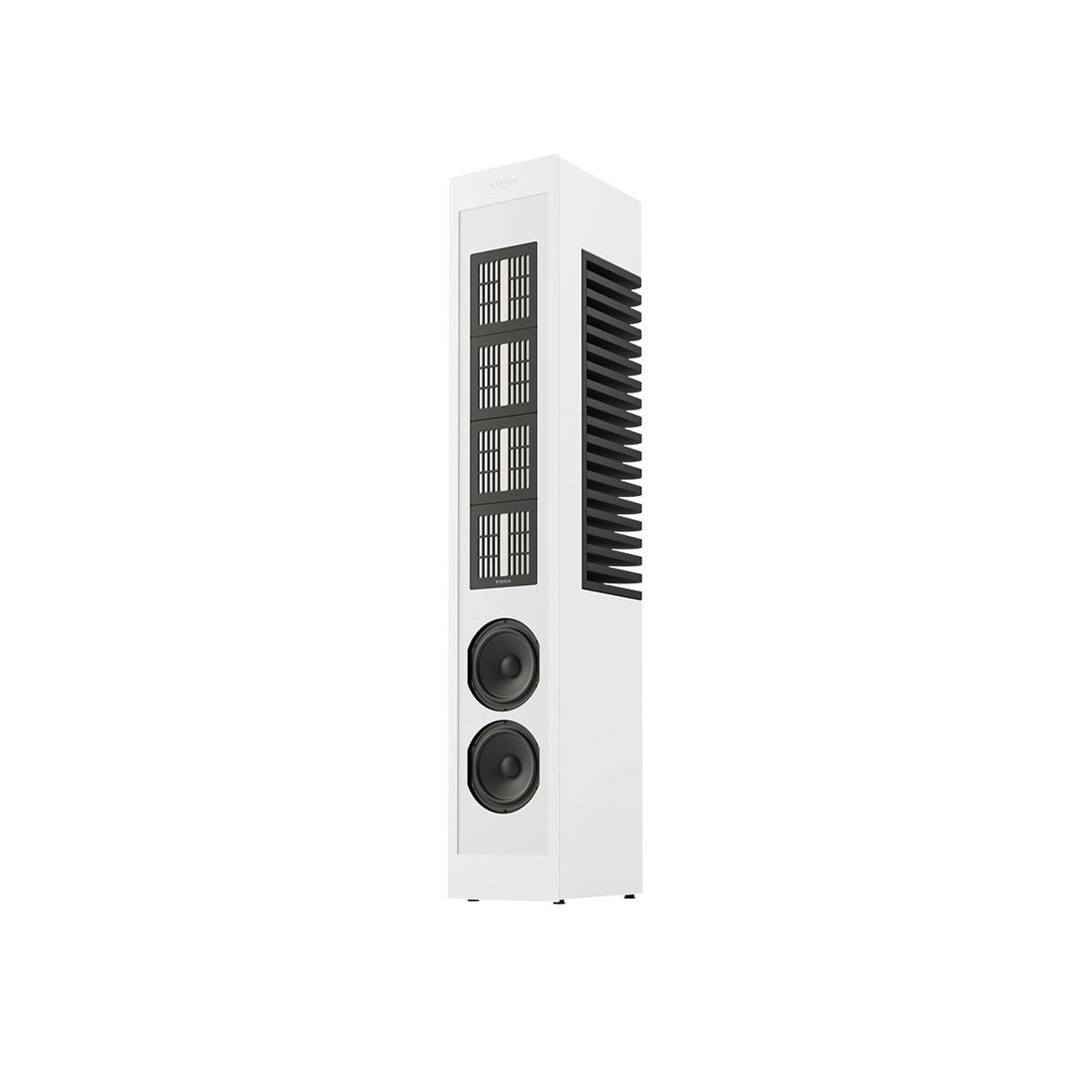

MASTER LINE SOURCE 2

The Master Line Source 2 is a smaller version of the Master Line Source, which can also be integrated in normal living rooms.


IMPRESSIVE APPEARANCE

Although the MLS 2, with a total weight of 93 kg, is considerably lighter than the MLS with its 176 cm height, it is slightly taller and is thus also the largest of PIEGA’s loudspeakers.

BRILLIANT MIDRANGE/TWEETER SOUND

Four Line Source Driver ribbons ensure unforgettable sound reproduction for all midrange and high frequencies.

SOLID BASS POWER

Two 220 mm UHQD subwoofers and two equally sized UHQD passive membranes radiating at the back provide a powerful bass sound.



ACOUSTIC LENSES

The rear acoustic lenses distribute the sound so expansively that it is possible to place a dipole speaker in the room like a conventional loudspeaker.

SWISS DESIGN

The MLS two was developed in close collaboration with Swiss designer Stephan Hürlemann and is available in four different cabinet designs.


Piega Master Line Source 2

ACOUSTIC LENS WITH LAMELLAE

The combined mid-range and tweeter ribbons, termed the line source drivers, emit sound, firstly, directly to the front. In addition, their sound, which is emitted backward consistent with the dipole characteristic is transformed into a wholly diffuse sound field by way of an elaborately engineered acoustic lens. Using diffraction and reflection, lamellae composed of painted MDF distribute the sound so expansively that it is only possible to place a dipole speaker within a space as a conventional loudspeaker if the MLS 2 is deployed.

Piega Master Line Source 2
NON-OSCILLATING CABINET

In order to uncompromisingly leverage the drivers’ high quality and lack of distortion, utmost care has been taken to ensure a lack of vibration in the cabinet. The Line Source Drivers are mounted within a 10 mm thick aluminium baffle, the entire surface of which is glued to the actual cabinet. This consists of a composite of MDF boards and the viscoelastic heavy- duty film – an extremely solid and rigid structure. These provide a perfect operating environment for the two PIEGA woofers, with a Diameter of 220 mm, also newly developed, as well as for the two rear passiv oscillating radiators.

Piega Master Line Source 2

Spesifikasjoner

TECHNICAL DATA

RECOMMENDED AMPLIFIER OUTPUT 20 – 500 watt
SENSITIVITY 92 db/W/m
IMPEDANCE 4 ohms
FREQUENCY RANGE 20 Hz – 50 kHz
DIMENSIONS H 176 cm x W 32 cm x D 43 cm
WEIGHT 93 kg
DESIGN PRINCIPLE Dipole 3-way system with acoustic lens
EQUIPMENT 4 x Line Source Drivers 2 x 220 mm, UHQD basses 2 x 220 mm, UHQD passive membranes
CONNECTIONS Bi-Wiring / WBT
VERSIONS Baffle in silver anodised aluminium, cabinet painted in silver. Baffle in black anodised aluminium, cabinet painted in high-gloss black. Baffle in white, cabinet painted in high-gloss white. Baffle in black anodised aluminium, cabinet in Zebrano matt veneer. Special design variants upon request
